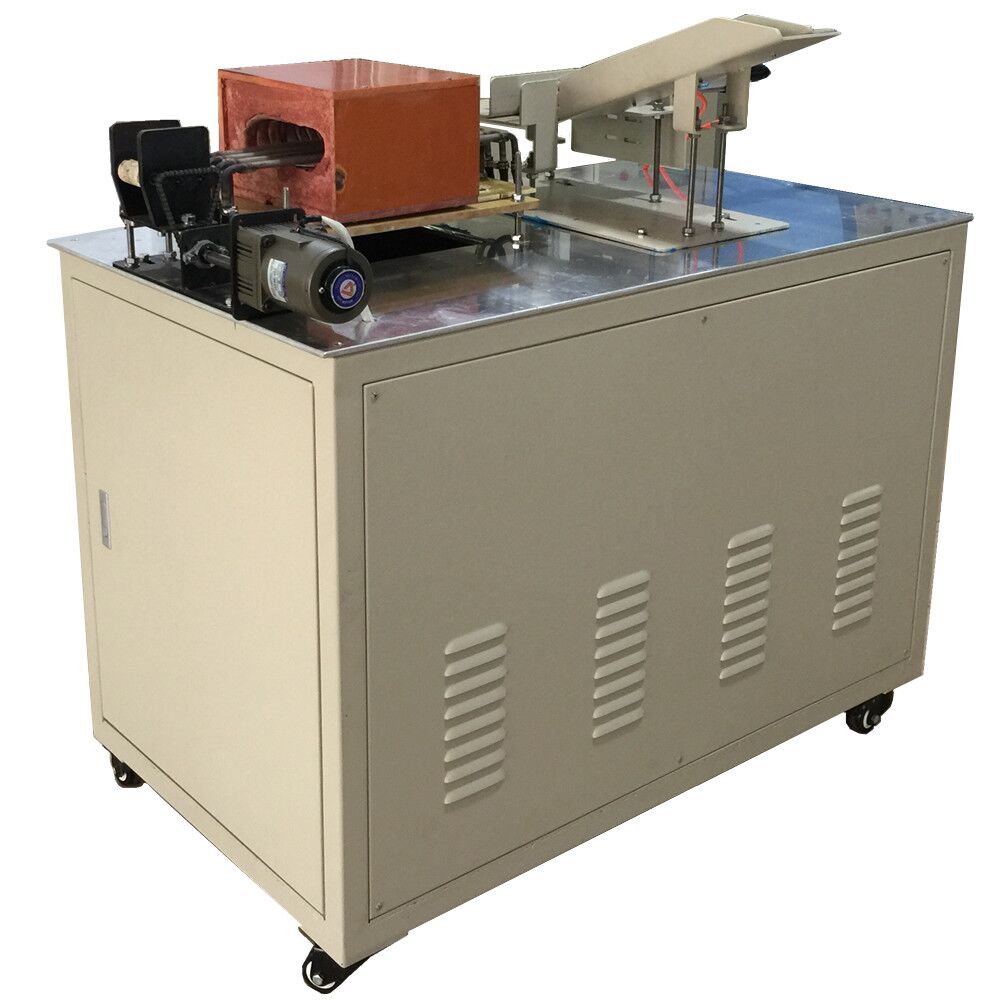

    Auto Induction Forging Machine Pulling Feeder For Brass / Copper / Steel Forging

    Ask Lasest Price
    Brand Name : GY
    Certification : CE, FCC, ROSH, SGS
    Price : USD3000/SET - US50000/SET
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100/SET Per Month
    Delivery Time : 10-20working days
    • Product Details
    • Company Profile

    Auto Induction Forging Machine Pulling Feeder For Brass / Copper / Steel Forging


    SpecificationMax output powerHeating capability for common materials
    GYM-25 forging furnace25KWRecommending for OD15-30mm steel bar heating
    GYM-40 forging furnace40KW
    GYM-60 forging furnace60KWRecommending for OD15-50mm steel bar heating
    GYM-100 forging furnace100KW
    GYM-160 forging furnace160KWRecommending for OD15-80mm steel bar heating
    GYM-200 forging furnace200KW
    GYM-250 forging furnace250KWRecommending for bigger than OD80mm mm steel bar heating

    Forging aims to fabricate the work pieces of certain temperature different materials require different temperatures into other shapes through forging press with the help of punch press forging machine or other equipment for instances hot extrusion of watch case watch flan handle mold accessory kitchen and table ware art ware standard part fastener fabricated mechanical part bronze lock rivet steel pin and pin.


    The equipment includes medium frequency induction heating machine, worktable, induction coil, feeding machine, Infrared temperature detector and some other parts.
    Features of medium frequency induction forging machine:
    1. Wide frequency range: 1KHZ—20KHZ, according the diameter of working piece to choose suitable frequency.
    2. When heating a whole piece of material, the length of induction coil can be made from 500mm –1m, when heating multiple pieces, better penetrating results can be guaranteed.
    3. It adopts continuously heating method, with uniform load in induction coil, it can solve the problem of great voltage change in output power during heating process when the temperature of work piece reach 1100℃ from room temperature, by this way, actual output power can be always above 95% efficiency, thus the machine is effectively used.
    4. When heating bronze, aluminum and other nonferrous metal, by suitable design of induction coil and capacitance, the actual output power of machine can be above 85% efficiency than calculated.
    5. Compare with controllable silicon frequency machine, our equipment is of small size, easy maintenance, and can save power by approximately 15--20%.
